Ανταλλακτικά για Slayer ESPRESSO single group
Σελίδα 1
BREW GROUP HEAD COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 44000-36152 | Stainless Steel Slotted Oval Head Screws, 1/4″-20 Thread Size, 1/2″ Long, Polished Head |
| 2 | 44000-50210 | Insert Nut for Brew Handle, Stainless |
| 3 | 44000-50190 | Spacer for Group Handle |
| 4 | 20000-56500-21 | Paddle, Actuator with Wood – European Ash |
| 5 | 44000-50260 | Screw, Group Cover Mount, Polished Head |
| 6 | 20000-16080 | Group Cover |
| 7 | 10000-16210 | Spacer |
| 8 | 44000-16220 | Washer, Fender, 3/8 x 1.25 x 0.05, Stainless |
| 9 | 99003-50051 | Tongue Assembly |
| 10 | 44000-36330 | Screw and Washer for Magnet and Power Supply |
| 11 | 30000-20042 | Mag Switch, N/O, pinned |
| 12 | 42000-34560 | Fitting, 90 Deg Elbow for 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 13 | 46000-50271 | Standoff, Nylon, 5/8″ length, 1/2″ OD, .257 ID |
| 14 | 99004-16100 | Group Cap With Magnet |
| 15 | 46000-50100 | Gasket for Group Cap, Paper |
| 16 | 46000-50090 | O-Ring, FKM, 70 A, Group Cap |
| 17 | 20000-56010 | Bayonet Ring |
| 18 | 46000-50080 | Diffuser Screw, Stainless |
| 19 | 46000-50073 | Nano Coated Shower Screen – Custom Slayer |
| 20 | 46000-56091 | Gasket for Group Head, 6.1mm |
| 21 | 44000-36000 | Spacer for Inverted Mag Switch |
| 22 | 44000-36140 | Screw and Washer for Inverted Magnet |
| 23 | 44000-56000 | Screw, Socket Head Cap, M8 Thread, 55mm Length, 1.25mm Pitch, Stainless |
| 24 | 30004-20082 | RTD, Brew Tank, Single Group, pinned |
| 25 | 10000-16161 | Stem for Brew Actuator, V3 |
| 26 | 46000-50240 | Belleville Disc Spring for Valve Assembly, Stainless |
| 27 | 10000-16200 | Bushing, Oilite |
| 28 | 46000-53070 | Gasket for Steam Valve Brew Actuator, 27mm, Teflon |
2
BREW TANK COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 40004-32630 | Brew Gauge Tube Single Group |
| 2 | 40004-32560 | Brew Tank Fill Tube, Single Group |
| 3 | 99004-50201 | Needle Valve Assembly, Single Group |
| 4 | 10004-50200 | Needle/Solenoid Mount Body, Single Group |
| 5 | 99003-16090 | Needle Assembly – Needle Only |
| 6 | 30000-20194 | Valve, 2-Way, Flange Mount, 2.5mm, 24v |
| 7 | 44005-10090 | Screw, Socket Head Cap, M4 Thread, 12mm Length, .7mm Pitch, Stainless |
| 8 | 46000-10040 | O-Ring, FKM, Dash number-010 |
| 9 | 30000-20153 | Valve, 3-way, Flange Mount, 2mm, 24v |
| 10 | 42000-34705 | Nut for 1/4″ Tube OD Easy-Align Brass Compression Tube Fitting |
| 11 | 10000-16061 | Giggleur, 0.7mm, V3 |
| 10005-16061 | Giggleur, 0.6mm | |
| 12 | 46000-10010 | O-Ring for Jet Holder, 1 x 3 |
| 13 | 40004-32510 | Preheat Tube, Single Group |
| 14 | 30000-20251 | Thermostat, 110C |
| 15 | 30000-20140 | Gasket, Element, Teflon |
| 16 | 30004-20130 | Element, Brew, 600 Watt, 110V, Single Group |
| 30000-20130 | Element, Brew, 600 Watt, 220V | |
| 17 | 44000-36070 | lock Washer, Element Mount |
| 18 | 44000-36080 | Hex Nut, Element Mount |
| 19 | 44004-37030 | 18-8 Stainless Steel Socket Head Cap Screw, 1/4”-20 Thread, 1/2” Length, packs of 50 |
| 20 | 15004-16061 | Brew Tank with Neck, Single Group |
| 21 | 42000-34560 | Fitting, 90 Deg Elbow for 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 22 | 42000-34660 | Fitting, 1/8 NPT x 1/8, Brass |
| 23 | 99000-50325 | Brew Gauge Assembly |
3

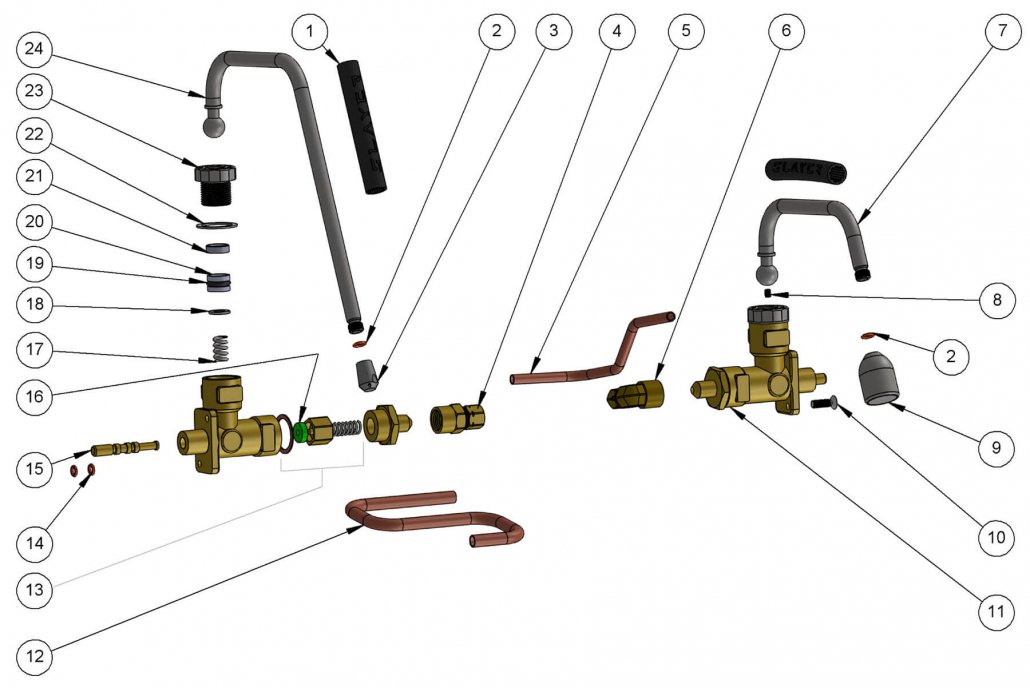

STEAM & HOT WATER COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 46005-53170 | Steam Wandom Grip – Slayer Branded |
| 2 | 46000-50030 | O-Ring for Steam Tip, 1.5 x 6 |
| 3 | 46000-50341 | Steam Tip, 1.1mm, #1 |
| 46000-50340 | Steam Tip, 1.0mm, #0 | |
| 46000-50342 | Steam Tip, 1.2mm, #2 | |
| 46000-50343 | Steam Tip, 1.3mm, #3 | |
| 46000-50344 | Steam Tip, 1.4mm, #4 | |
| 46000-50345 | Steam Tip, 1.5mm, #5 | |
| 4 | 42000-34540 | Fitting, 5/16″ Tube OD x 1/4″ NPTF – F, Brass |
| 5 | 40004-32540 | Hot Water Tube, Single Group |
| 6 | 42000-34670 | Fitting, Elbow, 1/4NPT x 1/4, Brass |
| 7 | 40004-50450 | Hot Water Wand, M4x.7 Tapped in Ball, Hot Water Spigot, Single Group |
| 8 | 46000-50450 | Set Screw, Vented Cup Point, M4 Thread, 5mm Long, Stainless |
| 9 | 46000-50350 | Hot Water Spout |
| 10 | 44000-36010 | Steam Valve Mounting Screw |
| 11 | 46000-53000 | DVG Steam Valve |
| 12 | 40004-32520 | Steam Line, Single Group |
| 13 | 46900-10010 | Steam Valve Rebuild Kit (spring, crush washer, plunger w/ gasket) |
| 14 | 46000-53090 | O-Ring for Brass Steam Valve Pin |
| 15 | 46000-53080 | Steam Valve Pin, Brass |
| 16 | 46000-53100 | Steam Seat Gasket for Steam Valve Seal |
| 17 | 46000-53030 | Articulation Spring for Steam Valve, 13x21mm |
| 18 | 46000-53040 | Washer, Flat, M7 Screw Size, 14mm OD, 1.4mm-1.8mm Thick |
| 19 | 46000-53050 | O-Ring for Peek Steam Valve Bushing |
| 20 | 46005-53060 | Bushing, 15 X 10.5mm Peek Plastic |
| 21 | 46005-53110 | Steam Seal, Peek Plastic |
| 22 | 46000-53070 | Gasket for Steam Valve Brew Actuator, 27mm, Teflon |
| 23 | 46000-53010 | Steam Valve Nut, Stainless |
| 24 | 40004-50330 | Steam Wand, #1 Tip, Single Group, Slayer Espresso |
4

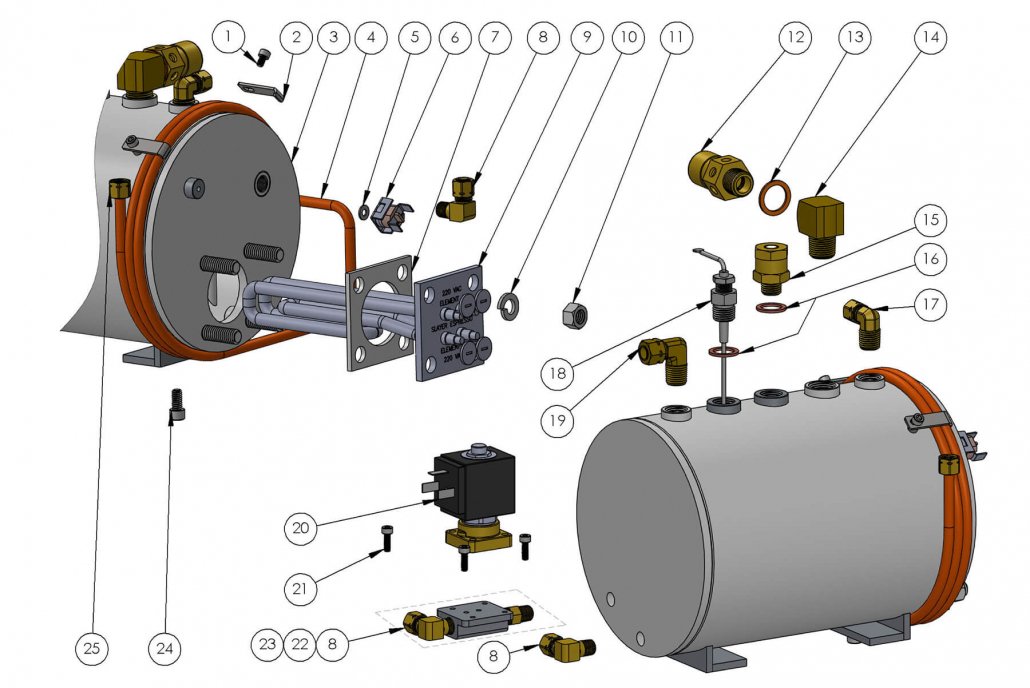

STEAM TANK COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 44004-36090 | Screw, SHCS, 8-32 x 1/4 Long, Stainless |
| 2 | 13004-10110 | Clamp for Preheat Tube |
| 3 | 15004-10110 | Steam Tank – Single Group |
| 4 | 40004-32510 | Preheat Tube, Single Group |
| 5 | 44000-10030 | Washer, Aluminum, 0.174″ ID, 0.375″ OD |
| 6 | 30000-20261 | Thermostat, 25A, 145C, Steam tank |
| 7 | 30000-20140 | Gasket, Element, Teflon |
| 8 | 42000-34560 | Fitting, 90 Deg Elbow for 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 9 | 30004-20180 | Element, Dual, 1400/600W, 220VAC |
| 30004-20170 | Element, Dual, 2000/1400 Watt, 120VAC | |
| 10 | 44000-36070 | lock Washer, Element Mount |
| 11 | 44000-36080 | Hex Nut, Element Mount |
| 12 | 46000-50120 | PRV, 2.5 Bar |
| 13 | 46000-50130 | Gasket for PRV, 3/8″, Copper |
| 14 | 42004-34500 | Fitting, Medium-Pressure, Threaded Pipe, 3/8 Pipe Size, M x F Elbow, Brass |
| 15 | 46000-50140 | Anti-Suction/Vacuum Valve, 1/4″ |
| 16 | 46000-50150 | Gasket ,1/4″, Copper for Anti Suction, Level Probe, Expansion Valve V3/Steam |
| 17 | 42000-34702 | Fitting, Easy-Align, Compression Tube, Elbow for 1/4″ Tube OD x 1/4 – M Pipe, Brass |
| 18 | 30004-50170 | Water Level Probe Slayer Espresso, 115mm |
| 19 | 42000-34680 | Fitting, Easy-Align, Compression Tube, Elbow for 5/16″ Tube OD x 1/4 – M Pipe, Brass |
| 20 | 30000-20194 | Valve, 2-Way, Flange Mount, 2.5mm, 24v |
| 21 | 44005-10090 | Screw, Socket Head Cap, M4 Thread, 12mm Length, .7mm Pitch, Stainless |
| 22 | 42000-34180 | Hex Nipple, Pipe Size 1/8″ |
| 23 | 10999-20191 | Solenoid Mount, Body |
| 24 | 44004-37030 | 18-8 Stainless Steel Socket Head Cap Screw, 1/4″-20 Thread, 1/2″ Length, packs of 50 |
| 25 | 42000-34705 | Nut for 1/4″ Tube OD Easy-Align Brass Compression Tube Fitting |
5

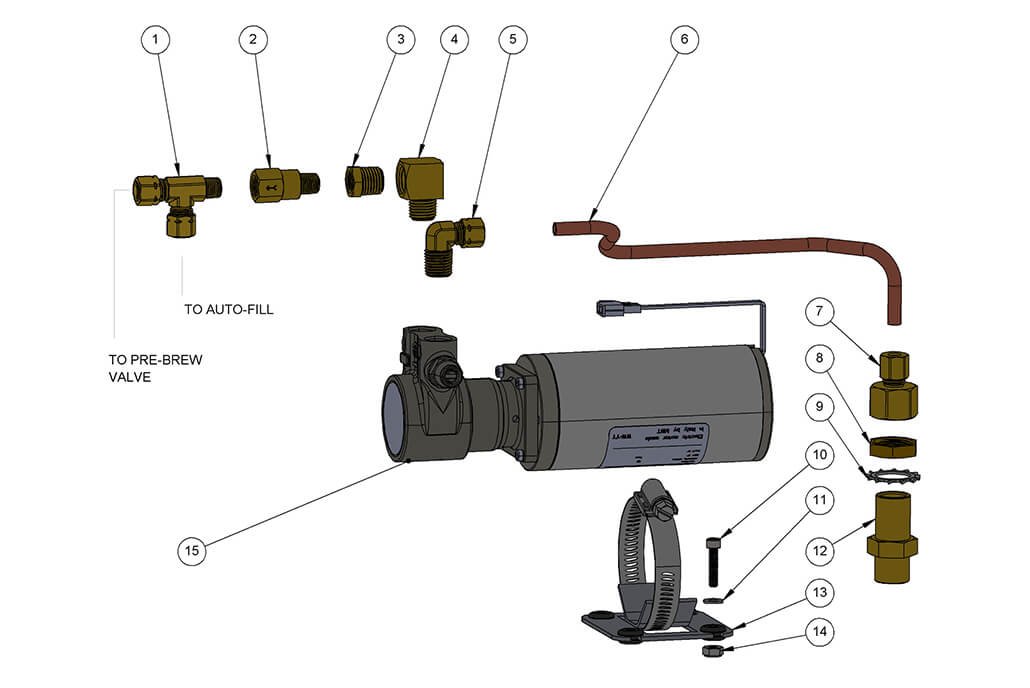

PUMP COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 42004-34520 | Fitting, Easy-Align, Compression Tube, Right Angle Tee for 1/4″ Tube OD x 1/8 – M Pipe, Brass |
| 2 | 42000-10110 | Check Valve, 1/8 NPT Male x 1/8 NPT Female |
| 3 | 42000-10140 | Adapter, HEX, 1/4 MNPT X 1/8 FNPT, Brass |
| 4 | 42004-34510 | Fitting, Medium-Pressure, Threaded Pipe, 1/4 Pipe Size, M x F Elbow, Brass |
| 5 | 42000-34702 | Fitting, Easy-Align, Compression Tube, Elbow for 1/4″ Tube OD x 1/4 – M Pipe, Brass |
| 6 | 40004-32010 | Inlet to Pump Tube |
| 7 | 42000-20000 | Fitting, Adapter, 1/4 OD Tube to 3/8 – F Pipe |
| 8 | 44000-10010 | Brass Nut – 3/8 BSPP |
| 9 | 44000-36360 | Washer, External Tooth, Star, 3/8 |
| 10 | 44000-10040 | SHCS, 8-32×0.75, 18-8 SS |
| 11 | 44000-10030 | Washer, Aluminum, 0.174″ ID, 0.375″ OD |
| 12 | 42000-10010 | Extension, Fitting, 3/8″ |
| 13 | 13004-10190 | D56 Motor Bracket |
| 14 | 44004-36050 | Nut, Nylock, 8-32 |
| 15 | 30004-10170 | Rotary Pump, 24VDC |
6

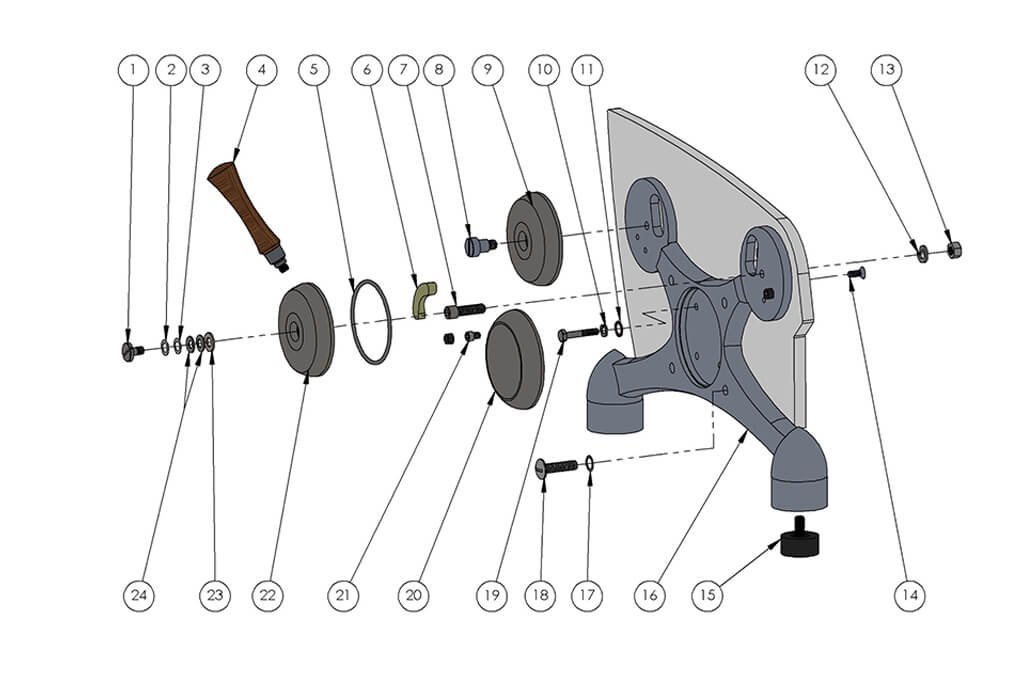

ACTUATOR & X COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 10004-36600 | Shoulder lock Screw, Single Group |
| 2 | 46004-10000 | Shim, Type 316, 0.010 Thick, 3/8 ID x 5/8 OD, Stainless |
| 3 | 46004-10001 | Shim, Type 316, 0.005 Thick, 3/8 ID x 5/8 OD, Stainless |
| 4 | 10000-56751-21 | Steam Handle, Single Group – European Ash |
| 5 | 46004-10002 | O-Ring, PTFE, Single Group Actuator |
| 6 | 10004-16130 | Actuator Ramp, Nylon, Single Group |
| 7 | 10004-36610 | Actuator Shoulder Bolt, Single Group |
| 8 | 10004-36031 | Shoulder Bolt, Short, 1/2″, Single Group |
| 9 | 10004-16100 | Actuator, Dummy, Single Group |
| 10 | 44000-36110 | lock Washer, Tank Mount |
| 11 | 46000-53160 | Shoulder Bolt Shim, Thick, Red |
| 12 | 44000-36070 | lock Washer, Element Mount |
| 13 | 44000-36080 | Hex Nut, Element Mount |
| 14 | 44000-36060 | Screw, Hub Mount |
| 15 | 46000-50180 | Rubber Foot, Slayer Espresso 1/2/3 Group |
| 16 | 20004-16140 | X-Casting, Single Group – Stock Silver |
| 17 | 46000-53160 | Shoulder Bolt Shim, Thick, Red |
| 18 | 44000-36040 | 18-8 SS Truss Head Slotted Machine Screw 3/8″-16 Thread, 1-1/2″ Length, Polished Head |
| 19 | 44000-36101 | Bolt, Hex Head, 1/4 -20 x 1-1/2 |
| 20 | 10004-16090 | Hub Cap, Single Group |
| 21 | 44000-36260 | Actuator, Steam, Stop Bolt, Short |
| 22 | 99004-16510 | Actuator Hub Assembly, Single Group – Left |
| 99004-16520 | Actuator Hub Assembly, Single Group – Right | |
| 23 | 46004-10005 | Washer, Flat, 300SS, 5/16″ Screw Size |
| 24 | 46004-10004 | Washer, Spring lock, Acetal, M8 Size |
7
ELECTRONICS COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 99004-60110 | Display Assembly, Single Group |
| 2 | 44004-36080 | Screw, Flat-Head Hex Drive, 6-32, 1/4″, Stainless |
| 3 | 44000-17000 | Loop Clamp, Nylon, 1in ID x 1/2in W (Black) |
| 4 | 44004-36050 | Nut, Nylock, 8-32 |
| 5 | 30000-20270 | Rocker Switch, Main Power |
| 99005-17010 | Pressure Transducer Assembly, ELTEK | |
| 7 | 44000-36510 | Washer, lock, Internal Tooth, #10 |
| 8 | 44000-36170 | Screw, Phillips, Valve Insert |
| 9 | 40004-32620 | Transducer Tube, Single Group |
| 10 | 42000-34705 | Nut for 1/4″ Tube OD Easy-Align Brass Compression Tube Fitting |
| 11 | 44004-36141 | Screw, Pan Head Phillips, M3 Size, 20mm Length, .5mm Pitch, Stainless |
| 12 | 30000-20003 | Power Supply, Cosel, 500 Watt |
| 13 | 44004-36090 | Screw, SHCS, 8-32 x 1/4 Long, Stainless |
| 14 | 30004-20011 | 20 Amp Solid State Relay, 12V |
| 15 | 30004-10160 | Main Board, rotary pump capable, single group |
| 16 | 44000-36131 | Screw, Pan Head Phillips, External lock Washer, 4-40 Thread, 3/16″ Length, Stainless |
| 17 | 44004-36120 | Hex Standoff 1/4″, 4-40 |
| 18 | 44000-36330 | Screw and Washer for Magnet and Power Supply |
| * | 30004-10010 | Element Jumper, Single Group |
| * | 30004-10020 | Solenoid Harness, Single Group |
| * | 30004-10030 | Magnetic Switch Harness, Single Group |
| * | 30004-10042 | Transducer Cable, Rast Connector, Single Group |
| * | 30004-10050 | Jumper, Power to Relay, Single Group |
| * | 30004-10060 | Jumper, Relay Signal, Single Group |
| * | 30004-10070 | Wire, Power to Control Board, Single Group |
| * | 30004-10080 | Heating Element Harness, Single Group |
| * | 30004-10090 | Autofill Harness, Single Group |
| * | 30004-10070 | Wire, Power to Control Board, Single Group |
| * | 30004-10150 | Relay Signal Harness |
| * | 30004-10130 | Power Tail, Single Grp LP |
| * | HARNESS AND JUMPER COMPONENTS NOT SHOWN IN IMAGE | |
8

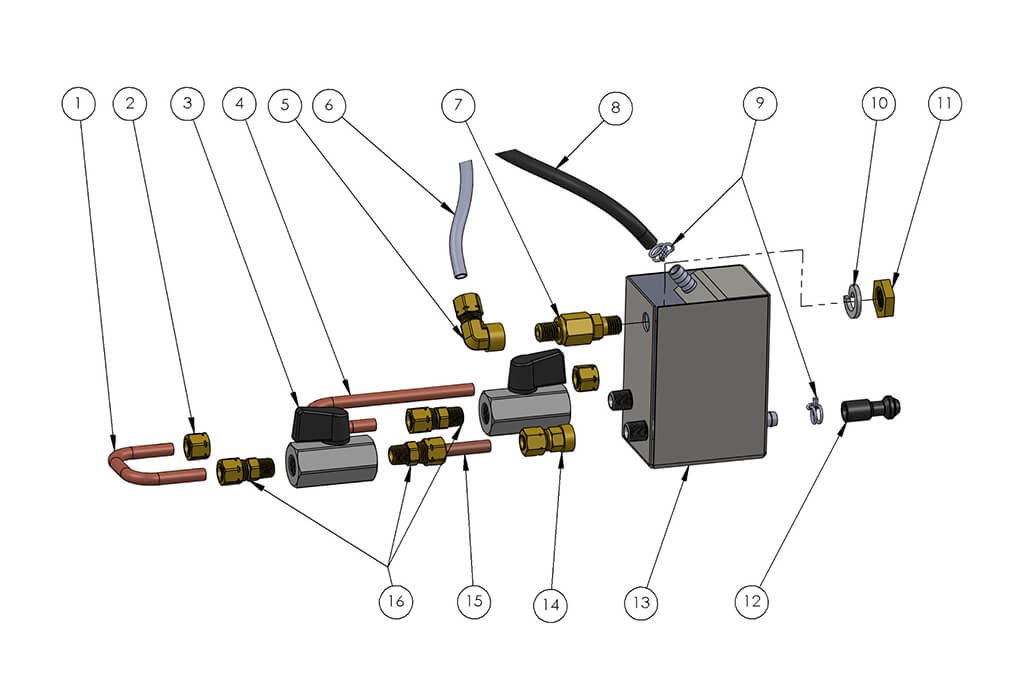

DRAIN COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 40005-32110 | Flow Meter Tube |
| 2 | 42000-34705 | Nut for 1/4″ Tube OD Easy-Align Brass Compression Tube Fitting |
| 3 | 42000-50290 | Ball Valve, 1/8″ NPT |
| 4 | 40004-32590 | Drain Tube Two |
| 5 | 42000-34570 | Brass Compression Tube Fitting, 90 Deg Elbow for 1/4″ Tube OD x 1/8″ NPTF – F |
| 6 | 40000-32050 | Extreme-Temp Tubing, Teflon, Semi-Clear White 1/8″ ID, 1/4″ OD – Per Inch |
| 7 | 42000-10020 | Expansion Valve Fitting, Single Group |
| 8 | 40000-32180 | EPDM Rubber Tubing 5/16″ ID, 7/16″ OD 40000 – Per Inch |
| 9 | 44000-36290 | Spring Clip for Single Group Drain, Small |
| 10 | 44000-36070 | lock Washer, Element Mount |
| 11 | 44004-10020 | Nut, 1/8 BSPP |
| 12 | 40004-32090 | Drain Tube, Drainbox to Drip Tray, Single Group |
| 13 | 13004-32090 Rev C | Drain Box, Single Group |
| 14 | 42000-34550 | Fiting, 1/4″ Tube OD x 1/8″ NPTF – F, Brass |
| 15 | 40005-32060 | Hot Water to Mix Valve Tube, Slayer Steam |
| 16 | 42000-34500 | Fitting, 1/4″ Tube OD x 1/8″ NPTF – M, |
9
PANELS & CHASSIS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 10004-16020-45.RC | Side Panel, Upper, Single Group – “STOCK BLACK” |
| 2 | 13004-10180 | Front Panel, Mount, Single Group |
| 3 | 13004-10080 | Front Panel, Upper, Single Group |
| 4 | 13004-10050 | Cup Tray, Lower, Single Group |
| 5 | 13004-10060 | Cup Tray Cover Single Group |
| 6 | 44004-50550 | Washer, Flat, NAS 1149, 3/8″ Size, .63″ OD, .02″-.04, Stainless |
| 7 | 44004-36040 | Screw, Socket Head Cap, 10-24 x 5/16 |
| 8 | 99004-10080 | Heat Sheild Electronics Assembly Single Group |
| 9 | 13004-10090-45 | Back Panel, Single Group – “STOCK BLACK” |
| 10 | 44000-36170 | Screw, Phillips, Valve Insert |
| 11 | 44000-36510 | Washer, lock, Internal Tooth, #10 |
| 12 | 99004-13100 | Side Block Assembly |
| 13 | 30004-30410 | Cord Strain Relief, Single Group |
| 14 | 10004-12010 | Base Plate Rotary pump |
| 15 | 44000-36102 | Bolt, Hex Head, 1/4-20 x 3/4 |
| 16 | 13004-16000 | Drip Tray Bracket, Single Group |
| 17 | 44000-36151 | Square Nut, 1/4″-20, Stainless |
| 18 | 44000-36050 | Screw, Tray/Bracket Mount |
| 19 | 44000-36110 | lock Washer, Tank Mount |
| 20 | 44000-36150 | Hex Nut, 1/4″-20 Thread Size, 7/16″ Width, 3/16″ Height, Stainless |
| 21 | 13004-10015 | Drip tray cover, Single Group, Single Piece |
| 22 | 44000-36370 | Nut for Mirror, 8-32 |
| 23 | 13004-10020 | Mirror, Single Group |
| 24 | 13004-10000 | Drip Tray, Liner, Single Group |
| 25 | 13004-10070 | Front Panel, Lower, Single Group |
| 26 | 10004-16010-45 | Side Panel, Lower, Single Group – “STOCK BLACK” |
| 27 | 44000-36160 | Screw, Body Panels |
| 28 | 30000-20280 | PID Spacer, Rubber |
| 29 | 13004-16040 | Group Neck Cover, Single Group |
10

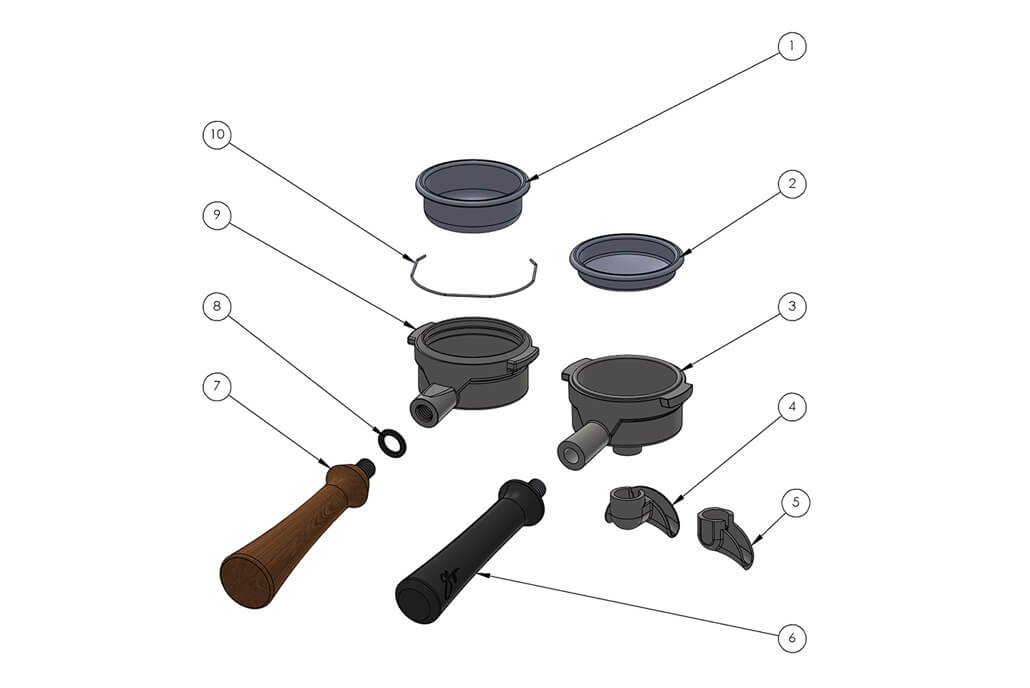

PORTAFILTERS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 46000-56551 | Single Basket, Espresso, Steam |
| 46000-56070 | Double Portafilter Basket, Ridgeless | |
| 46000-56063 | Triple Basket, Espresso, Steam | |
| 2 | 46000-56100 | Blind Portafilter Basket |
| 3 | 46000-56120 | Spouted Portafilter, Body Only |
| 4 | 46000-56130 | Portafilter Double Spout, Spout Only |
| 5 | 46000-56131 | Portafilter Single Spout, Spout Only |
| 6 | 24015-10011 | Portafilter Handle, Soft Touch with Slayer Logo |
| 7 | 47000-61008 | Portafilter Handle, European Ash |
| 8 | 46000-56030 | Gasket for Portafilter Handle |
| 9 | 46000-56041 | Portafilter Body, Naked, Metal Only |
| 10 | 46000-56160 | Portafilter locking Spring, 1.20 mm, Stainless |
| * | 46000-60020 | Slayer Cleaner 566g (20oz) |
| * | SLAYER CLEANER NOT SHOWN IN IMAGE | |
| COMPLETE PORTAFILTERS | ||
| 86000-50010 | European Ash Naked Portafilter | |
| 86000-50011 | European Ash Single Spouted Portafilter | |
| 86000-50012 | European Ash Double Spouted Portafilter | |
| 86015-50000 | Soft Touch Naked Portafilter | |
| 86015-50001 | Soft Touch Single Spouted Portafilter | |
| 86015-50002 | Soft Touch Double Spouted Portafilter | |
Ανταλλακτικά μηχανών
