Ανταλλακτικά για Slayer ESPRESSO 2 / 3 groups
Σελίδα 1
BREW GROUP HEAD COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 44000-36152 | Stainless Steel Slotted Oval Head Screws, 1/4″-20 Thread Size, 1/2″ Long, Polished Head |
| 2 | 44000-50210 | Insert Nut for Brew Handle, Stainless |
| 3 | 44000-50190 | Spacer for Group Handle |
| 4 | 20000-56500-21 | Paddle, Actuator with Wood – European Ash |
| 5 | 44000-50260 | Screw, Group Cover Mount, Polished Head |
| 6 | 20000-16080 | Group Cover |
| 7 | 10000-16210 | Spacer |
| 8 | 44000-16220 | Washer, Fender, 3/8 x 1.25 x 0.05, Stainless |
| 9 | 99003-50051 | Tongue Assembly |
| 10 | 44000-36140 | Screw and Washer for Inverted Magnet |
| 11 | 30000-20032 | Mag Switch, N/C, pinned |
| 12 | 42000-34300 | Fitting, Medium- Pressure, Threaded Pipe, 1/8 Pipe Size, Solid Hex-Head Plug, Brass |
| 13 | 46000-50270 | Stand Off for Group Cover |
| 14 | 44000-36000 | Spacer for Inverted Mag Switch |
| 15 | 99004-16100 | Brew Cap With Magnet |
| 16 | 46000-50100 | Gasket for Group Cap, Paper |
| 17 | 46000-50090 | O-Ring, FKM, 70 A, Group Cap |
| 18 | 20000-56010 | Bayonet Ring |
| 19 | 46000-50080 | Diffuser Screw, Stainless |
| 20 | 46000-50073 | Nano Coated Shower Screen – Custom Slayer |
| 21 | 46000-56091 | Gasket for Group Head, 6.1mm |
| 22 | 30000-32010 | Molex Mini-Fit Jr Receptacle Housing, 2×1 (M) |
| 23 | 30000-20042 | Mag Switch, N/O, pinned |
| 24 | 44000-56000 | Screw, Socket Head Cap, M8 Thread, 55mm Length, 1.25mm Pitch, Stainless |
| 25 | 30000-32020 | Molex Mini-Fit Jr Plug Housing, 2×1 (F) |
| 26 | 30000-20082 | RTD, Brew Tank, V3, Pinned |
| 27 | 10000-16161 | Stem for Brew Actuator, V3 |
| 28 | 46000-50240 | Belleville Disc Spring for Valve Assembly, Stainless |
| 29 | 10000-16200 | Bushing, Oilite |
| 30 | 46000-53070 | Gasket for Steam Valve Brew Actuator, 27mm, Teflon |
2

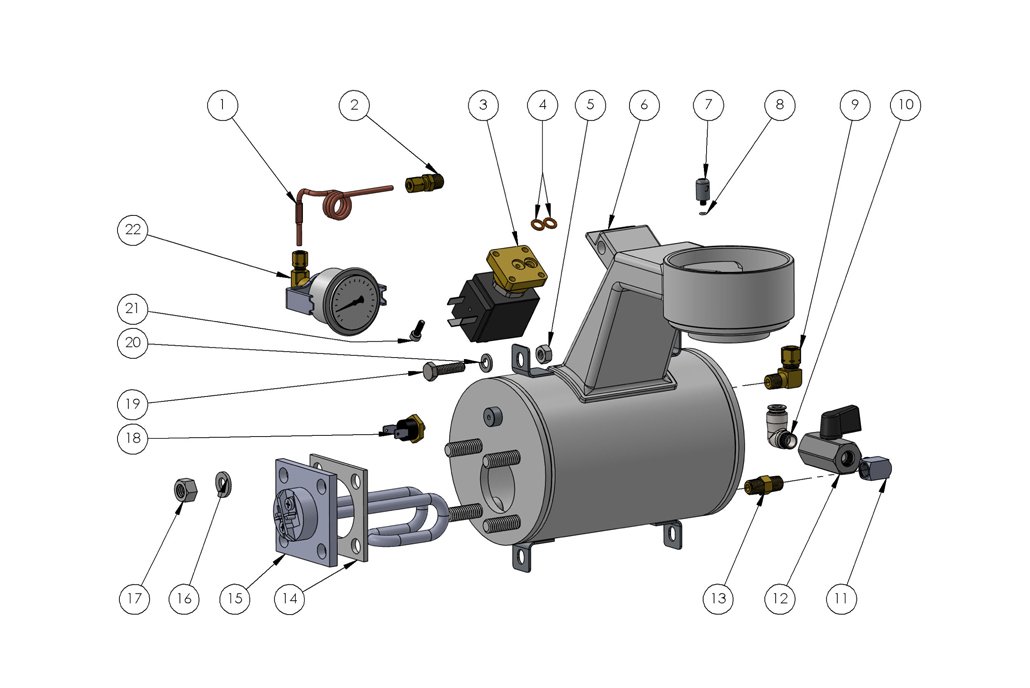

BREW TANK COMPONENTS
3

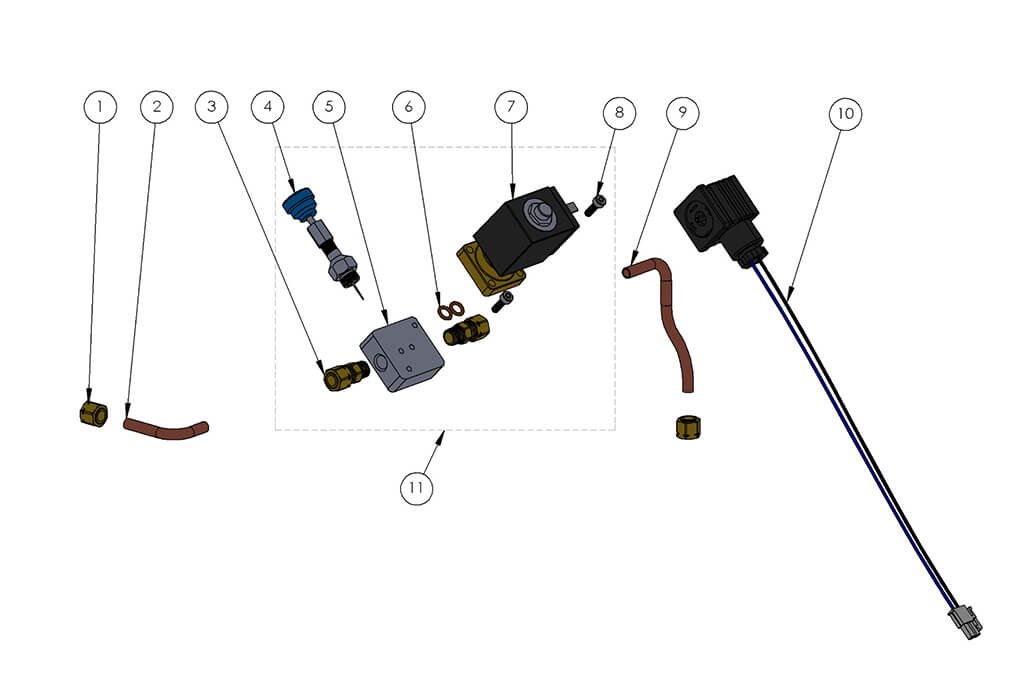

NEEDLE VALVE COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 42000-34705 | Nut for 1/4″ Tube OD Easy-Align Brass Compression Tube Fitting |
| 2 | 40003-32620 | Brew Tube #1 |
| 3 | 42000-34500 | Fitting, 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 4 | 99003-16090 | Needle Assembly – Needle Only |
| 5 | 10999-50201 | Needle/Solenoid Body |
| 6 | 46000-10040 | O-Ring, FKM, Dash number-010 |
| 7 | 30000-20194 | Valve, 2-Way, Flange Mount, 2.5mm, 24v |
| 8 | 44005-10090 | Screw, Socket Head Cap, M4 Thread, 12mm Length, .7mm Pitch, Stainless |
| 9 | 40003-32660 | Brew Tube for Cast Neck & Cold Water Inlet |
| 10 | 30000-16030 | Needle Valve Harness |
| 11 | 99003-50200 | Needle Valve Assembly |
4
STEAM & HOT WATER WAND COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 40000-50330 | Steam Wand, #3 Tip, 2/3 Group, Slayer Espresso |
| 2 | 42000-34500 | Fitting, 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 3 | 44000-50421 | Nut, 1″ -14, Stainless |
| 4 | 44000-50400 | Washer, External-Tooth, 1″ Screw Size, 1.62″ OD, .05 -.07 Thick, Zinc |
| 5 | 10003-53200 | Hot Water Fitting |
| 6 | 46000-53030 | Articulation Spring for Steam Valve, 13x21mm |
| 7 | 46000-53070 | Gasket for Steam Valve Brew Actuator, 27mm, Teflon |
| 8 | 46000-53040 | Washer, Flat, M7 Screw Size, 14mm OD, 1.4mm-1.8mm Thick |
| 9 | 46005-53060 | Bushing, 15 X 10.5mm Peek Plastic |
| 10 | 46000-53050 | O-Ring for Peek Steam Valve Bushing |
| 11 | 46005-53110 | Steam Seal, Peek Plastic |
| 12 | 46000-53010 | Steam Valve Nut, Stainless |
| 13 | 40003-50450 | Hot Water Spout, 2/3 Group |
| 14 | 46000-50030 | O-Ring for Steam Tip, 1.5 x 6 |
| 15 | 46000-50350 | Hot Water Spout |
| 16 | 46000-50343 | Steam Tip, 1.3mm, #3 |
| 46000-50340 | Steam Tip, 1.0mm, #0 | |
| 46000-50341 | Steam Tip, 1.1mm, #1 | |
| 46000-50342 | Steam Tip, 1.2mm, #2 | |
| 46000-50344 | Steam Tip, 1.4mm, #4 | |
| 46000-50345 | Steam Tip, 1.5mm, #5 | |
| 17 | 46005-53170 | Steam Wandom Grip – Slayer Branded |
| 18 | 44000-36315 | Screw, Socket Head Cap Low Profile, M5 Thread, 12mm length, .8mm Pitch, 18-8 Stainless |
| 19 | 46000-53000 | DVG Steam Valve |
| 20 | 42000-34540 | Fitting, 5/16″ Tube OD x 1/4″ NPTF – F, Brass |
| 21 | 46900-10010 | Steam Valve Rebuild Kit (spring, crush washer, plunger w/ gasket) |
| 22 | 46000-53100 | Steam Seat Gasket for Steam Valve Seal |
| 23 | 46000-53090 | O-Ring for Brass Steam Valve Pin |
| 24 | 46000-53080 | Steam Valve Pin, Brass |
5
STEAM TANK COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 46000-50310 | Steam Gauge, 30 PSI, Custom-Printed Slayer logo |
| 2 | 42000-34550 | Fiting, 1/4″ Tube OD x 1/8″ NPTF – F, Brass |
| 3 | 42000-34560 | Fitting, 90 Deg Elbow for 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 4 | 42000-34510 | Fitting, 5/16″ Tube OD x 1/4″ NPTF – M, Brass |
| 5 | 15000-10110 | Steam Tank, Slayer Espresso, 2 Group, V3 |
| 15000-13110 | Steam Tank, Slayer Espresso, 3 Group, V3 | |
| 6 | 30004-50170 | Water Level Probe Slayer Espresso, 115mm |
| 7 | 46000-50150 | Gasket ,1/4″, Copper for Anti Suction, Level Probe, Expansion Valve V3/Steam |
| 8 | 46000-50140 | Anti-Suction/Vacuum Valve, 1/4″ |
| 9 | 46000-50120 | PRV, 2.5 Bar |
| 10 | 46000-50130 | Gasket for PRV, 3/8″, Copper |
| 11 | 99003-20065 | Thermistor w/ Molex, V3, Steam Tank |
| 12 | 30000-20140 | Gasket, Element, Teflon |
| 13 | 44000-10030 | Washer, Aluminum, 0.174″ ID, 0.375″ OD |
| 14 | 30000-20261 | Thermostat, 25A, 145C, Steam tank |
| 15 | 30000-20090 | Element, Steam, 3500 Watt, 220V, 2 Group |
| 30000-20100 | Element, Steam, 4500 Watt, 220V, 3 Group | |
| 16 | 44000-36070 | lock Washer, Element Mount |
| 17 | 44000-36080 | Hex Nut, Element Mount |
| 18 | 42000-34580 | Fitting, Threaded Pipe, 1/8″ Pipe Size, Tee, F x F x M, Nickel |
| 19 | 42000-34500 | Fitting, 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 20 | 30000-20351 | Hot Water Solenoid Valve, 24 VDC |
| 21 | 42000-34080 | Medium-Pressure Brass Threaded Pipe Fitting, 1/8″ Pipe Size, M Elbow |
| 22 | 42000-50290 | Ball Valve, 1/8″ NPT |
| 23 | 42000-34140 | Push Connect Swivel Fitting |
| 24 | 99003-20190 | Steam Fill Assembly |
| 25 | 40005-32060 | Hot Water to Mix Valve Tube, Slayer Steam |
| 26 | 40000-32550 | Steam Gauge Tube, Copper |
6
PRE-HEAT WATER COMPONENTS
| 1 | 46000-50110 | Expansion Valve |
| 2 | 46000-50150 | Gasket ,1/4″, Copper for Anti Suction, Level Probe, Expansion Valve V3/Steam |
| 3 | 42000-34500 | Fitting, 1/4″ Tube OD x 1/8″ NPTF – M, Brass |
| 4 | 42000-34800 | Elbow Fitting 1/4 Bspp for Expansion Valve |
| 5 | 15003-10120 | Preheat Tank, Slayer Espresso, 2 Group, V3 |
| 15003-13120 | Preheat Tank, Slayer Espresso, 3 Group, V3 | |
| 6 | 30000-20251 | Thermostat, 110C |
| 7 | 46000-53190 | Gasket for Preheat Element, Teflon |
| 8 | 42000-34050 | Fitting, Threaded Pipe, 1/4″ Pipe Size, Tee, F x F x M, Nickel |
| 9 | 42000-34010 | Brass Threaded Pipe Fitting 1/4″ – M x 1/8″ – F, Hex Reducing Bushing, 3000 PSI |
| 10 | 42000-50290 | Ball Valve, 1/8″ NPT |
| 11 | 42000-34140 | Push Connect Swivel Fitting |
| 12 | 99003-20066 | Thermistor w/ Molex, V3, Pre-Heat Tank |
| 13 | 30003-20110 | I KW Preheat Element with 1″ NPSM Mount |
| 14 | 44000-10010 | Brass Nut – 3/8 BSPP |
| 15 | 44000-36360 | Washer, External Tooth, Star, 3/8 |
| 16 | 42000-10010 | Extension, Fitting, 3/8″ |
| 17 | 42000-34630 | Fitting, Medium- Pressure, Threading Pipe, 3/8 – F x 1/4 – M, Pipe Size Adaptor, Brass |
| 18 | 42000-34620 | Check Valve, Medium-Pressure, Valve, 1/4″ NPT – F x 1/4 NPT – M, Buna N Seal, Brass |
| 19 | 42000-34590 | Fitting, Compression Tube, Adapter, for 3/8″ Tube OD x 1/4″ NPTF – F Pipe, Brass |
| 20 | 40003-32500 | Preheat Fill Tube, V3 |
| 21 | 42000-34170 | Compression Tube Fitting, Elbow for 3/8″ Tube OD x 1/4 NPT |
| 22 | 42000-34080 | Medium-Pressure Brass Threaded Pipe Fitting, 1/8″ Pipe Size, M Elbow |
7

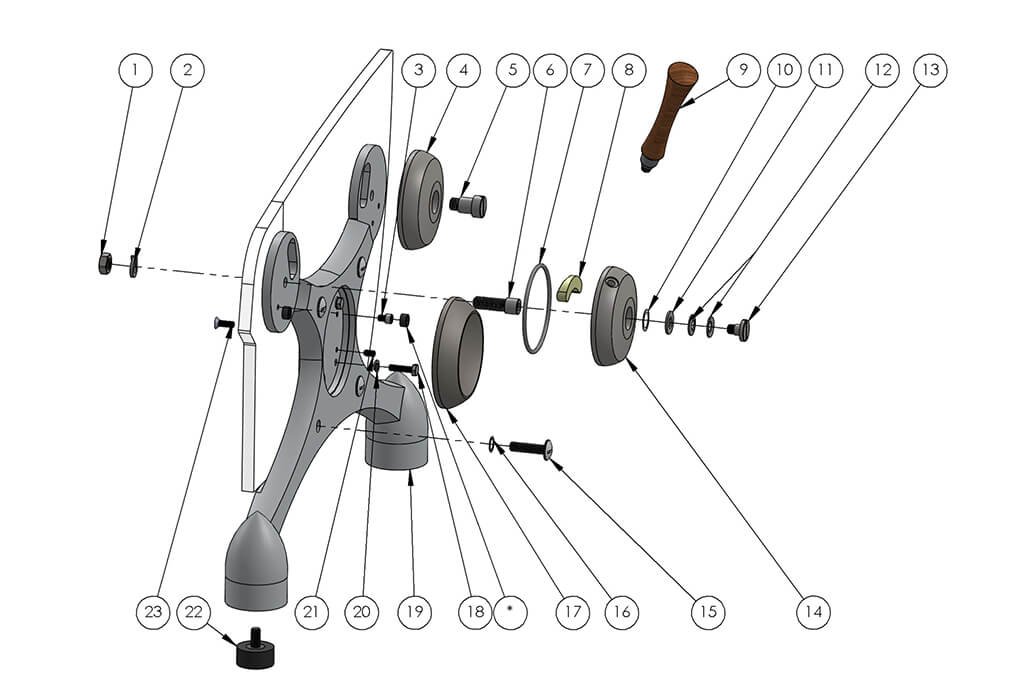

ACTUATORS & X COMPONENTS
| 1 | 46003-10006 | Hex Nut, Thin, 1/2″-13 Thread Size |
| 2 | 46003-10007 | lock Washer, 1/2″ Screw Size |
| 3 | 44000-36260 | Actuator, Steam, Stop Bolt, Short |
| 4 | 10000-16100 | Actuator, Dummy, 2/3 Group |
| 5 | 10003-36031 | Shoulder Bolt, Short, 5/8″, 2/3 Group |
| 6 | 10003-36610 | Shoulder Bolt, Actuator, 2/3 Group |
| 7 | 46003-10003 | O-Ring, PTFE, Dash Number 237 |
| 8 | 10000-16130 | Actuator Ramp, Nylon, 2/3 Group |
| 9 | 10000-56750 | Steam Handle, Insert Only |
| 10 | 46003-10002 | Washer, Flat, 7/16″, Stainless |
| 11 | 46003-10001 | Washer, Spring, Acetal, M10 |
| 12 | 46000-53160 | Shoulder Bolt Shim, Thick, Red |
| 13 | 10003-36600 | lock Screw, Shoulder Bolt |
| 14 | 99003-16310 | Actuator Subassembly, V3 – Left |
| 14 | 99003-16320 | Actuator Subassembly, V3 – Right |
| 15 | 44000-36040 | 18-8 SS Truss Head Slotted Machine Screw 3/8″-16 Thread, 1-1/2″ Length, Polished Head |
| 16 | 46000-53150 | Shim, Shoulder Bolt, Thin, Gray |
| 17 | 10000-16090 | Hub Cap, 2/3 Group |
| 18 | 44000-36100 | Bolt, Tank Mount |
| 19 | 20999-16140 | X-Casting, 2/3 Group – Stock SIlver |
| 20 | 44000-36110 | lock Washer, Tank Mount |
| 21 | 44000-36300 | Set Screw, Cup-Point, 1/4″-20 Thread, 7/16″ Long, Stainless |
| 22 | 46000-50180 | Rubber Foot, Slayer Espresso 1/2/3 Group |
| 23 | 44000-36060 | Screw, Hub Mount |
8
DRAIN COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 40000-32180 | EPDM Rubber Tubing 5/16″ ID, 7/16″ OD – Per Inch |
| 2 | 40000-32180 | EPDM Rubber Tubing 5/16″ ID, 7/16″ OD – Per Inch |
| 3 | 40000-32150 | High-Temperature Silicone Rubber Tubing, Soft, 5/16″ ID, 7/16″ OD, 1/16″ Wall, White – Per Inch |
| 4 | 40000-32050 | Extreme-Temp Tubing, Teflon, Semi-Clear White 1/8″ ID, 1/4″ OD – Per Inch |
| 5 | 42000-34220 | Fitting, Tube, Hex Socket Adapter for 1/4″ Tube OD, 1/8″ NPT M, Polybutylene & Nickel |
| 6 | 40000-32060 | Worm-Drive Hose Clamp, Non Slip Screw 1/2″ to 1-1/16″ Clamp Diameter Range, 9/16″ Band Width |
| 7 | 40000-32120 | High-Pressure PVC Tubing, Food, 5/8″ ID, 7/8″ OD, 1/8″ Wall Thickness, per inch |
| 8 | 44000-36170 | Screw, Phillips, Valve Insert |
| 9 | 13000-16180 | Drain Panel |
| 10 | 40000-32090 | Drain Pipe, Slayer Espresso, 2/3 Group |
| 11 | 40000-32610 | Clamp, Copper, 1/2″ |
| 12 | 44004-36050 | Nut, Nylock, 8-32 |
| 13 | 42005-10000 | Fitting, Barbed Hose, Adapter for 5/16″ Hose ID x 1/8″ NPTF – M Pipe, Brass |
| 14 | 44000-36290 | Spring Clip for Single Group Drain, Small |
9
ELECTRONICS & POWER COMPONENTS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 30000-20180 | Water Level Regulator, Auto Fill Box |
| 2 | 30000-20360 | 24V DC Mini Relay |
| 3 | 30000-20003 | Power Supply, Cosel, 500 Watt |
| 4 | 44004-36141 | Screw, Pan Head Phillips, M3 Size, 20mm Length, .5mm Pitch, Stainless |
| 5 | 30000-20300 | Solid State Timer |
| 6 | 44000-36100 | Bolt, Tank Mount |
| 7 | 44000-36150 | Hex Nut, 1/4″-20 Thread Size, 7/16″ Width, 3/16″ Height, Stainless |
| 8 | 46000-53040 | Washer, Flat, M7 Screw Size, 14mm OD, 1.4mm-1.8mm Thick |
| 9 | 44000-36380 | Washer, 1/4 NEX tooth l/w for ground |
| 10 | 30000-20050 | Solid State Relay, 40 Amp |
| 30000-20011 | 20 Amp Solid State Relay, 24V | |
| 11 | 44000-36400 | PHMS, 8-32X0.31, Phillips, 18-8 SS |
| 12 | 30000-30090 | Cord Strain Relief, Romex Connector, 1/2″ |
| 13 | 30000-30100 | Cord Strain Relief, Romex Connector, 3/4″ |
| 14 | 30000-20240 | Magnetic Circuit Breaker, 40 Amps |
| 30000-20230 | Magnetic Circuit Breaker, 30 Amps | |
| 15 | 44000-36090 | Screw, Breaker Mount |
| 16 | 13000-16050 | Cover, Breaker Switch |
| 17 | 30000-20271 | Sealing Boot, Silicone, Transparent, 2600 Series Switch |
| 18 | 30000-20270 | Rocker Switch, Main Power |
| 19 | 44000-36160 | Screw, Body Panels |
| 20 | 30000-20255 | Circuit Breaker, Push Type, 10 Amp, 220V |
| 21 | 30000-20310 | Potentiometer, 470K |
| 22 | 30000-20220 | Love Controller, Preheat and Steam |
| 23 | 30000-20320 | Knob for Potentiometer |
| 24 | 30000-20210 | PID Controller for Brew Tanks, Fuji |
| 25 | 44000-36171 | Screw, Socket Cap, 8-32 x 5/16 |
| 26 | 30000-20011 | 20 Amp Solid State Relay, 24V |
10
PUMP COMPONENTS & LINES
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 30000-20446 | Harness, Motor, 2/3 Group, CE |
| 30000-20470 | Harness, Motor, 2/3 Group, UL | |
| 2 | 30000-58020 | Motor, 1/3 HP, Wired for 220V |
| 3 | 44000-58010 | V-Band Clamp for Pump |
| 4 | 40005-10010 | Stainless Steel Hose, 3/8″ Fc x CFc 2000mm |
| 5 | 42000-10030 | Tee Fitting, 3/8 M/M/M |
| 6 | 42000-10010 | Extension, Fitting, 3/8″ |
| 7 | 30000-58030 | Pump, 45 GPH |
11
PANELS & CHASSIS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 99000-20160 | Hot Water Switch Assembly, V3 |
| 2 | 13000-10060 | Cup Tray, Cover, Slayer Espresso, 2 Group |
| 13000-13060 | Cup Tray, Cover, Slayer Espresso, 3 Group | |
| 3 | 13000-10050 | Cup Tray, Lower, Slayer Espresso, 2 Group |
| 13000-13050 | Cup Tray, Lower, Slayer Espresso, 3 Group | |
| 4 | 13000-10090-45 | Back Panel, Slayer Espresso, 2G – “STOCK BLACK” |
| 13000-13090-45 | Back Panel, Slayer Espresso, 3G – “STOCK BLACK” | |
| 5 | 13003-10100 | Spar, Slayer Espresso, 2 Group, V3 |
| 13003-13100 | Spar, Slayer Espresso, 3 Group, V3 | |
| 6 | 99000-20170 | V3 Timer Button Assembly |
| 7 | 13000-10071 | Front Panel, Lower, Slayer Espresso, 2 Group, Hot Water |
| 13000-13071 | Front Panel, Lower, Slayer Espresso, 3 Group, Hot Water | |
| 8 | 13000-10000 | Drip Tray, Liner, Slayer Espresso, 2 Group |
| 13000-13000 | Drip Tray, Liner, Slayer Espresso, 3 Group | |
| 9 | 13000-10020 | Mirror, Slayer Espresso, 2 Group |
| 13000-13020 | Mirror, Slayer Espresso, 3 Group | |
| 10 | 44000-36370 | Nut for Mirror, 8-32 |
| 11 | 44000-36150 | Hex Nut, 1/4″-20 Thread Size, 7/16″ Width, 3/16″ Height, Stainless |
| 12 | 44000-36110 | lock Washer, Tank Mount |
| 13 | 44000-36100 | Bolt, Tank Mount |
| 14 | 13000-10015 | Drip Tray, Single Piece, 2 Group |
| 13000-13015 | Drip Tray, Single Piece, 3 Group | |
| 15 | 13000-16000 | Drip Tray Bracket, Upper, Slayer Espresso, 2/3 Group |
| 13000-16001 | Drip Tray Bracket, Lower, Slayer Espresso, 2/3 Group | |
| 16 | 13003-16040 | Group Neck Cover, Slayer Espresso & Steam, 2/3 Group |
| 17 | 30000-20280 | PID Spacer, Rubber |
| 18 | 10000-16010-45.RD | Side Panel, Front, Slayer Espresso – “STOCK BLACK” |
| 19 | 44000-36160 | Screw, Body Panels |
| 20 | 10000-16020-45 Rev B | Side Panel, Rear, Slayer Espresso – “STOCK BLACK” |
| 21 | 13000-10081 | Front Panel, Upper, Slayer Espresso, 2 Group, Hot Water |
| 13000-13081 | Front Panel, Upper, Slayer Espresso, 3 Group, Hot Water |
12

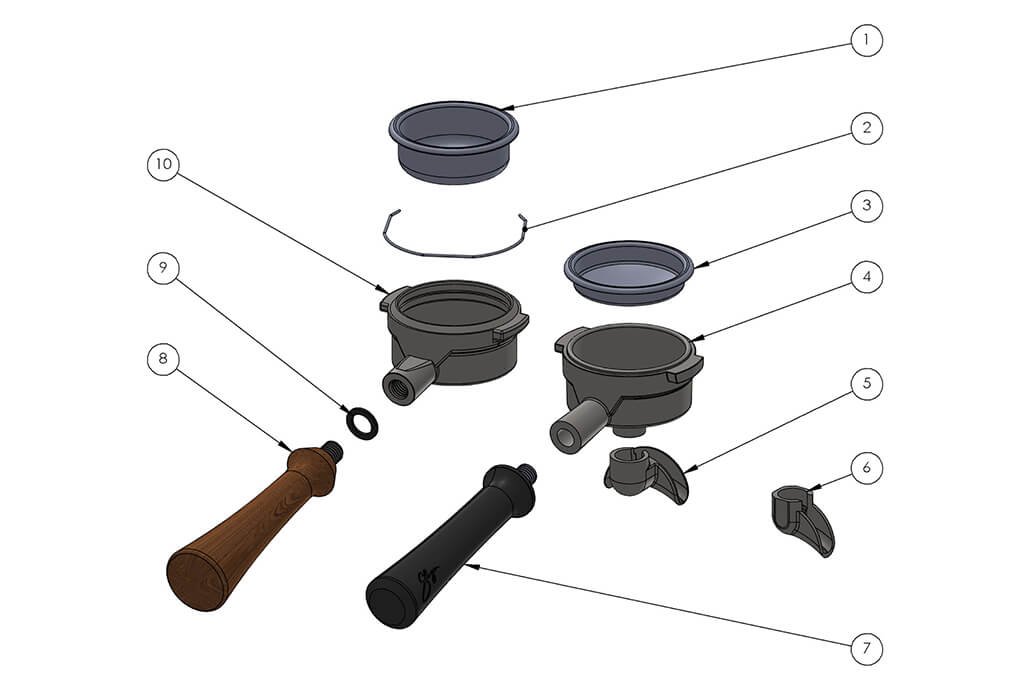

PORTAFILTERS
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 46000-56551 | Single Basket, Espresso, Steam |
| 46000-56070 | Double Portafilter Basket, Ridgeless | |
| 46000-56063 | Triple Basket, Espresso, Steam | |
| 2 | 46000-56160 | Portafilter locking Spring, 1.20 mm, Stainless |
| 3 | 46000-56100 | Blind Portafilter Basket |
| 4 | 46000-56120 | Spouted Portafilter, Body Only |
| 5 | 46000-56130 | Portafilter Double Spout, Spout Only |
| 6 | 46000-56131 | Portafilter Single Spout, Spout Only |
| 7 | 24015-10011 | Portafilter Handle, Soft Touch with Slayer Logo |
| 8 | 47000-61008 | Portafilter Handle, European Ash |
| 9 | 46000-56030 | Gasket for Wood Portafilter Handle |
| 10 | 46000-56041 | Portafilter Body, Naked, Metal Only |
| * | 46000-60020 | Slayer Cleaner 566g (20oz) |
| * | SLAYER CLEANER NOT SHOWN IN IMAGE | |
| COMPLETE PORTAFILTERS | ||
| 86000-50010 | European Ash Naked Portafilter | |
| 86000-50011 | European Ash Single Spouted Portafilter | |
| 86000-50012 | European Ash Double Spouted Portafilter | |
| 86015-50000 | Soft Touch Naked Portafilter | |
| 86015-50001 | Soft Touch Single Spouted Portafilter | |
| 86015-50002 | Soft Touch Double Spouted Portafilter | |
13
HOT WATER & STEAM CIRCUIT
| ITEM NO. | PART NUMBER | DESCRIPTION |
| 1 | 40000-32520 | Steam Valve Tube, Copper |
| 2 | 40003-32510 | Steam Fill, Long |
| 3 | 44000-36220 | Fitting, 45 Degree, Flared, Short Nut for 1/4″ Tube OD, Brass |
| 4 | 40003-32640 | Mix Water Outlet Line |
| 5 | 99003-20350 | Hot Water Assembly |
| 6 | 42000-34670 | Fitting, Elbow, 1/4NPT x 1/4, Brass |
| 7 | 42000-34630 | Fitting, Medium- Pressure, Threading Pipe, 3/8 – F x 1/4 – M, Pipe Size Adaptor, Brass |
| 8 | 42000-10010 | Extension, Fitting, 3/8″ |
| 9 | 44000-36360 | Washer, External Tooth, Star, 3/8 |
| 10 | 44000-10010 | Brass Nut – 3/8 BSPP |
| 11 | 40003-32650 | Cold Water Inlet Line |
| 12 | 99033-16240 | Steam Wand, Assembly, V3 |
Ανταλλακτικά μηχανών
